| الاسم التجاري: | VIKSTARS |
| رقم الطراز: | VS-STL-Z10/15/20/30 |
| الـ MOQ: | 20 قطعة |
| السعر: | قابل للتفاوض |
| تفاصيل التعبئة: | العنصر: VS-STL-Z15 حجم المصباح: 690*240*78.5 مم ، CTN الحجم: 74*30*12.5 سم 1PC/CTN |
| شروط الدفع: | T/T |

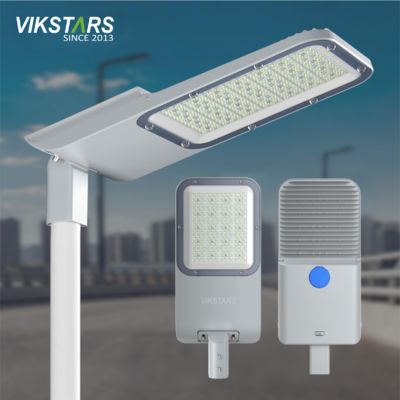

Newest Main Street Project 100w 150w 200w Led Street Light 50000 Lifespan Street Lighting Led
DELIVERY

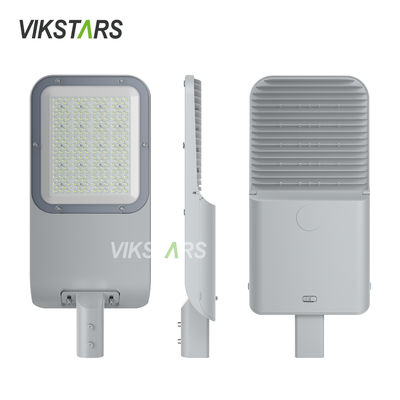

| LAMP NAME | LED STREET LIGHT | |||

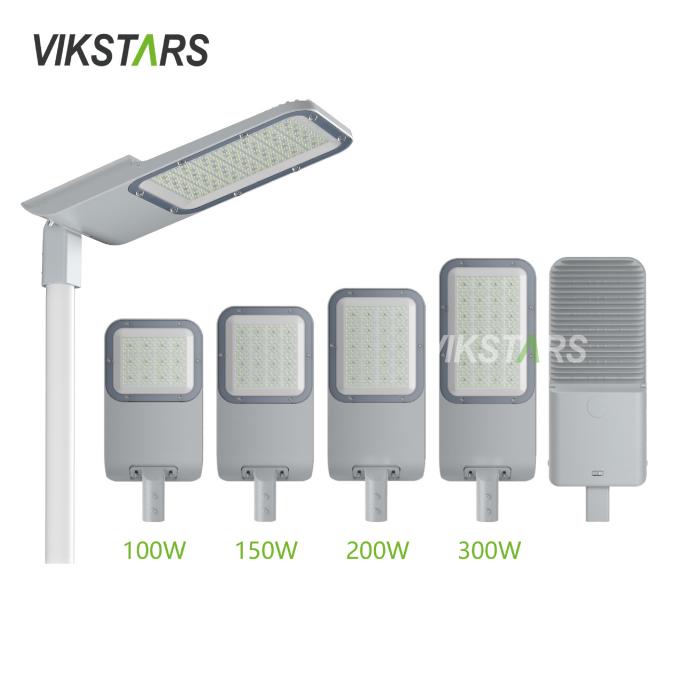

| MODEL NO. | VS-STL-Z10 | VS-STL-Z15 | VS-STL-Z20 | VS-STL-Z30 |
| POWER | 100W | 150W | 200W | 300W |
| LUMEN EFFICIENCY |
>140lm/w
|
|||
| INSTALL HEIGHT | 3-4m | 5-6m | 6-8m | 8-10m |
| LED QTY | 96pcs | 144pcs | 240pcs | 320pcs |
| BEAM ANGLE |
70*140°
|
|||
| VOLTAGE |
85-265Vac
|
|||
| PF | ＞0.95 | |||
| CCT | Default: Cold White (Warm White / Neutral White for option) | |||
| C.R.I. | ＞70Ra | |||
| INSTALL WAY |
Horizontal Install / Vertical Install / Wall Install / Hug Hoop Install
(Accessories not include hoop, need buy additionally)
|
|||
| WATERPROOF |
IP65
|
|||
| MATERIAL | Die-casting Aluminum Heat Sink + PC lens + Glass Cover / Grey | |||
| LAMP SIZE | 620*310*90mm | 670*310*90mm | 720*310*90mm | 830*310*90mm |
| HOLDER SIZE |
Ø60mm
|
|||
| PACKING | Export Neutral Carton Packing / VIKSTARS Brand Packing / Customizing Packing |
|||
|
SOLUTION
|
Project Solution
|
Top-level Solution
|
|
| LEDs TYPE | 3030 |
EMC 3030
|
|
| DRIVER |
VIKSTARS Self-Developed Driver
|
Global Certified MEANWELL Driver
|
|
| WARRANTY | 3 Years |
5 Years
|
|
|
REGULAR
|

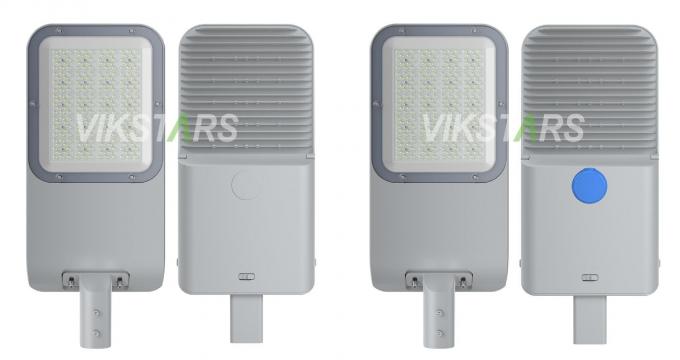

With Photocell Switch Auto light up at night, auto turn off at day |
 |
|||
|

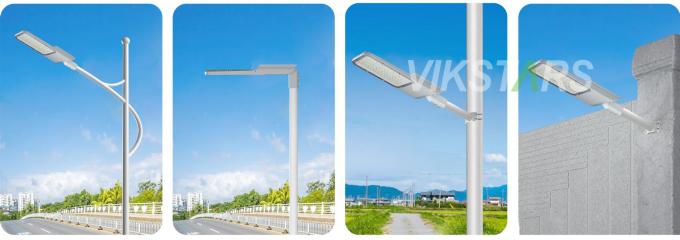

Horizontal Install |
Vertical Install |
Hug Hoop Install |
Wall Install |
| Power | Carton Size | Qty/ctn | G.W. |
Packing
|
| 100W | 665*370*120mm | 1pc/ctn | 5.50kg |
Export Neutral Carton Packing
/ VIKSTARS Brand Packing
/ Customizing Packing
|
| 150W | 715*370*120mm | 1pc/ctn | 6.20kg | |
| 200W | 815*370*120mm | 1pc/ctn | 7.00kg | |
| 300W | 865*370*120mm | 1pc/ctn | 8.50kg |
|
|
